Home > Products >Wall Lights / Up-Down Lights

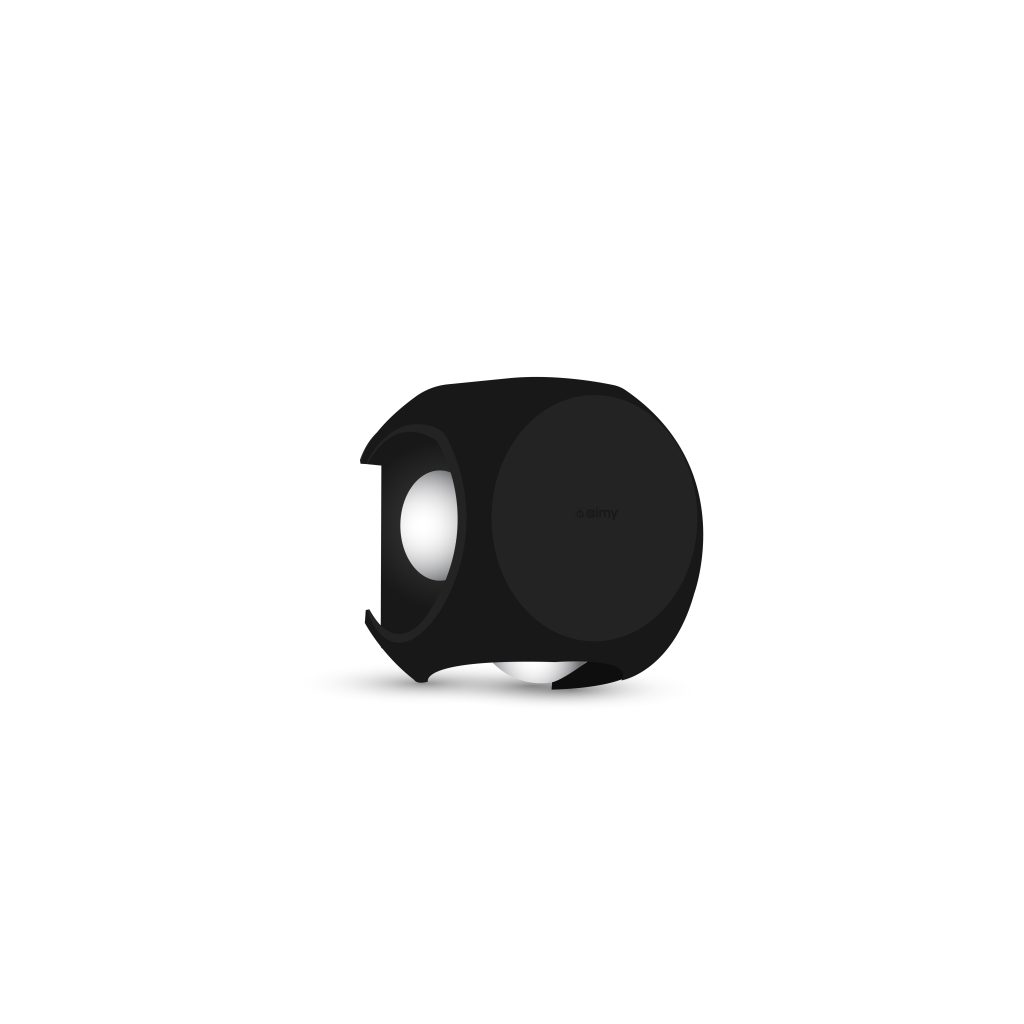

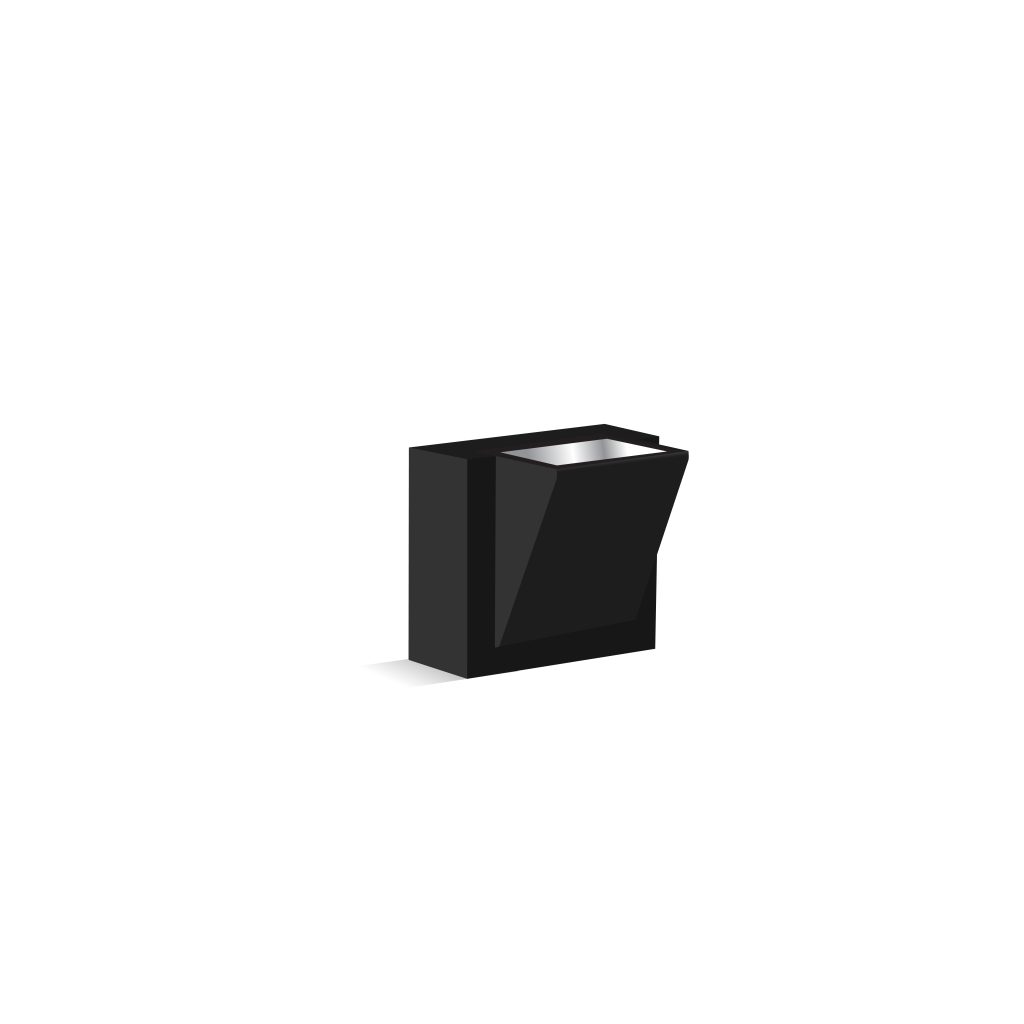

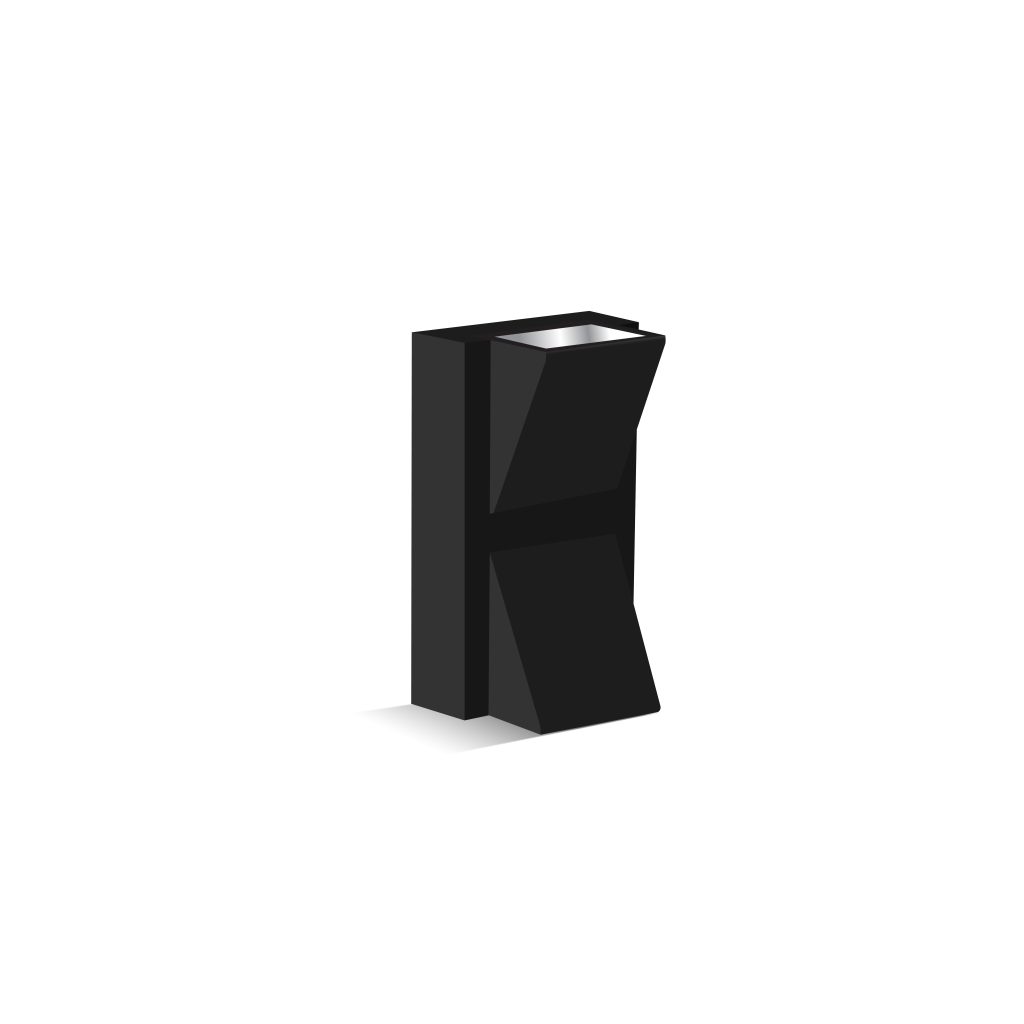

| Parameters | KBY2 | K Lite | COMPASS |
|---|---|---|---|
| MODEL DATA | |||
| Category | Wall Lights / Up-Down Lights | Wall Lights / Up-Down Lights | Wall Lights / Up-Down Lights |
| Model Code | KL4 | KL10 | CP7 |
| Warranty | 1 Year | 1 Year | 1 Year |
| MRP | ₹825 | ₹1200 | ₹1750 |
| ELECTRICAL DATA | |||
| Rated Wattage | 4W | 10W | 7W |
| Input Voltage | 180-240VAC | 180-240VAC | 180-240VAC |
| Power Factor | >0.90 | >0.90 | >0.90 |
| Total Harmonic Distortion (THD) | N/A | N/A | N/A |
| Surge Protection | 2.5kv | 2.5kv | 2.5kv |
| Efficiency (%) | 90% | 90% | 90% |
| Color Rendering Index (CRI) | >80 | >80 | >80 |
| PHOTO NUMERICAL DATA | |||
| CCT | 2700K – 3200K 6000K – 6500K |
2700K – 3200K 6000K – 6500K |
2700K – 3200K 6000K – 6500K |
| Rated Flux | 400LM | 1000LM | 700LM |
| Beam Angle | 120 Degree | 120 Degree | 120 Degree |
| MECHANICAL DATA | |||
| Net weight | 205g | 350g | 330g |
| IP Rating | IP65 | IP65 | IP65 |
| Material | Aluminum Die Cast | Aluminum Die Cast | Aluminum Die Cast |
| Available Colors | Cool / Warm / Red / Green / Blue / Pink | Cool / Warm / Red / Green / Blue / Pink / Multi Colors | Cool / Warm / Red / Green / Blue / Pink / Multi Colors |
